Customising Office 365 icon in SharePoint 2013

While implementing an Office 365 solution, I did some quick fixes to the system (mostly branding the site) which I would like to share in this post.

Hiding the Office 365 icon on the top left of the window

Add the following lines to the CSS file

.ms-core-brandingBox {display:none;}

Editing the Office 365 icon to custom icon

If you want to show your company logo instead, add the logo to your SharePoint site and refer it in the CSS like the following:

#suiteBrandingIconBox {background-image:url(image url location)!important;
background-color:transparent;background-position:top left;background-repeat:no-repeat;height:30px; }

Hiding the Show More on person.aspx

When you implement mysites within SharePoint 2013, on the person.aspx page, there are few information available for the person like Email Address, Office Phone, Mobile and so on. This webpart comes with a Jquery link Show More and Show Less which contracts and expands on click.

I had a requirement where I had to hide this button and expand the box always so that all the values are visible to the user at all times. Here is how I implemented the solution.

• Find out the ID for the control by going to Developer tools within your browser.
• Replace it after the # sign in the example below.
• Add the whole snippet into Script Editor webpart on the person.aspx page

Override redirect using EditItemWithCheckoutAlert

On an edit item link, you want to perform some operation and redirect to a page of your choice, write a small script on your page and override the EditItemWithCheckoutAlert function.

So when you click on the edit link, the EditForm.aspx opens.

This allows you to modify the fields and delete the list item. Once you perform your desired action, the dialog box is closed and you are redirected to previous view/default view. To override this, use the script below, modify it to suit your URL and put it in a CEWP/Script Editor WP on your page.

Converting InfoPath data connections to UDCX files

While working with InfoPath 2013 and SharePoint 2013 on a Windows 2012 platform, I came across an issue where I was not able to convert the InfoPath data connections into UDCX files. I was getting the error below:

The specified location does not exist or could not be opened. Choose a data connection library on a server running Microsoft SharePoint Server and specify a valid filename.

After some read through, I found out that for this to be able to work, I would need a Windows feature installed on the server. This feature is Desktop Experience. Once I enabled this from the Server Manager, and restarted the server, I got rid of this error. Files were then getting converted to UDCX and were published to the Data Connection library.

Hope this helps someone.

Disabling mobile site within SharePoint 2010

As we all know that SharePoint creates a very basic (ugly looking) default site for mobile devices. When opening the site from any mobile browser, it automatically directs the website to the respective mobile website which has /m appended to it.

My client did not wanted the default mobile site to open within mobile devices as it gives a very untidy look so they wanted to disable the redirect function. If you have similar issues, follow the steps below to disable the redirection.

• Navigate to:
• C:\inetpub\wwwroot\wss\VirtualDirectories\<yoursharepointsite>\App_Browsers\compat.browser
• Locate
• <userAgent match=”iPhone”&gt
• Now under <capabilities> tag, locate
• <capability name=”isMobileDevice”    value=”true”/>
• Change this to false
• Now for Android, repeat the same thing and set the ismobileDevice attribute to false.

No need to reset the iis or anything else. Just save the file and browse the site from iphone, you will see the desktop site opening.

Also, I noticed that if you create a backup copy of the file with any name within the folder, the site breaks and doesn’t render. So make changes within the file and copy it to some other location for a backup copy.

There is a MobilityRedirect feature within the SPWeb which can be disabled to prevent the redirection as well.

• Disable-SPFeature –Identity MobilityRedirect –Url <url>

Hope this helps someone

Deleting work item in TFS using Visual Studio 2010

As I was setting up TFS (Team Foundation Services) for my upcoming SharePoint project, I created few work items such as Tasks, Sprint Backlog, Bugs etc. also created custom fields and values within them. To test these items, I created a few test work items before moving it to live. Now, I wanted to get rid of the test work items I created before I could log live data in it. So here comes this post, where I would write on how we can delete work items from TFS. So, first of all, there is no simple tick and delete UI from Microsoft which does so. Microsoft recommends using command line to delete the work items. There are some free tools available through few of the sites, but I prefer deleting using command line. Follow the steps below:

• Open Visual Studio Command Prompt by navigating to Start > All Programs > Microsoft Visual Studio 2010 > Visual Studio Tools
• Note down the IDs of the work items you want to remove from the TFS
• Within the command prompt type the below syntax:

witadmin destroywi /collection <your TFS site collection> /id:<id>,<id>,<id>

Note: For noting down the IDs of the work items you can run a query that has ‘test’ in the Title field, provided you have entered test while your testing.

Resetting Sync databse within SharePoint

Resetting Sync database will delete the database completely with all the values in it.

I think one should reset the sync database as the last thing when all troubleshooting tricks provide no result. Only consider resetting when:

• Your import user profile connection is fetching details from AD but they cannot be seen on SharePoint
• Similar scenario with export connections, so you want to push changes back to AD but you don’t see any changes on AD
• You have modified settings on your FIM Client manually

Here is a very nice article on resetting the sync database you should follow before considering a  reset:

http://technet.microsoft.com/en-us/library/ff681014.aspx#resetSync

PS: The User related information such as Profile Pictures, About Me etc. resides in Profile DB and the Social DB, these information will be safe as you do a reset of your Sync database

The tool was unable to install Application Server role. Web Server (IIS) role

While installing SharePoint 2013 onto Server 2012, I came across an error as “The tool was unable to install Application Server role. Web Server (IIS) role”. After browsing internet for resolution, I finally could resolve my issue. But while doing my investigation into the error, I came across posts where different people have tried different things to resolve the same error. I will try to collate those and post it in one single post.

Option 1 :

Go to Server Manager and click on Add Roles and Features

Select and expand Web Server (IIS) Role

Select the IIS 6 Scripting tools under Management Tools within Web Server role

Click Next until the wizard finishes

Rerun the Pre-requisite setup and see if you have been able to resolve the error.

Option 2: (only for Windows 2008 R2)

Go to command prompt and run this command:

C:\Windows\Microsoft.NET\Framework64\v4.0.30319\aspnet_regiis.exe -i –enable

Option 3:

Run powershell with admin priviledges

Run the following commands: (I mounted my Server 2012 ISO on D drive)

Import-Module ServerManager

Add-WindowsFeature NET-WCF-HTTP-Activation45,NET-WCF-TCP-Activation45,NET-WCF-Pipe-Activation45

Add-WindowsFeature Net-Framework-Features,Web-Server,Web-WebServer,Web-Common-Http,Web-Static-Content,Web-Default-Doc,Web-Dir-Browsing,Web-Http-Errors,Web-App-Dev,Web-Asp-Net,Web-Net-Ext,Web-ISAPI-Ext,Web-ISAPI-Filter,Web-Health,Web-Http-Logging,Web-Log-Libraries,Web-Request-Monitor,Web-Http-Tracing,Web-Security,Web-Basic-Auth,Web-Windows-Auth,Web-Filtering,Web-Digest-Auth,Web-Performance,Web-Stat-Compression,Web-Dyn-Compression,Web-Mgmt-Tools,Web-Mgmt-Console,Web-Mgmt-Compat,Web-Metabase,Application-Server,AS-Web-Support,AS-TCP-Port-Sharing,AS-WAS-Support, AS-HTTP-Activation,AS-TCP-Activation,AS-Named-Pipes,AS-Net-Framework,WAS,WAS-Process-Model,WAS-NET-Environment,WAS-Config-APIs,Web-Lgcy-Scripting,Windows-Identity-Foundation,Server-Media-Foundation,Xps-Viewer -Source D:\Sources\sxs

Using Filters within InfoPath Data connection

I have been asked a number of times by various community members on how to fetch SharePoint list values within the Data connection based on certain condition, so I thought to write a post about it and spread the word.

InfoPath allows us to create data connections and fetch values from any SharePoint list. We can also select which column values we want to select. The data connection will then return all the items within the list, to control which value(s) we want to fetch, we can apply filters.

filters Click on the Dropdown properties and select/add a Data connection. In the Entries field, click the XPath selector button which will enable us to select which column value we want to bind to the dropdown control.

Select the parent node and click on Filter Data... to bring up the filter choices

Click on Add filter option and then you can select your InfoPath controls to create a condition for fetching the values from the list.

Click on Ok and run the form to verify. The list of values will be based on the conditions being set within the filter.

InfoPath dropdown with different Value and Display Name

InfoPath dropdown comes with an ability to have different values being sent to the list/database and a different value to be viewed by users. For eg., you bind a dropdown which fetches users from a SharePoint security group and you want to display the “Display Name” attribute of the user within the dropdown values at the same time you want to map this field to a People picker field within the list and for that purpose you want to send the “Login Name” attribute to the people picker field. In such a scenario, follow the screenshots to create a similar functionality.

Click on the Dropdown properties

Select the datasource from the Data source dropdown or you can create one here as well. Then click on the Select XPath button (highlighted in the image).

In the Entries field, select the parent node and click OK.

This will enable you to select two different values for the Value and the Display Name field.
Now from the returning values, select the ones you want for each field and save your form.

To view your changes, you may want to publish the form and verify the changes.

Using JQuery to hide SharePoint 2013 List Item fields

Hiding unnecessary fields in DispForm.aspx/EditFOrm.aspx is something most of us implement within our SharePoint implementations. Here is a quick way to achieve that using JQuery.

Hiding any List Item fields

So you have many fields in your NewForm.aspx but you want to hide some like in the screenshot. I want to hide the fields I haven’t underlined.

I will click on Edit Page, and add a Script  Editor webpart on the page. From the below script, just change the number in which your fields appear on the page using a 0 index. So to hide the first field, enter 0, second field – enter 1 and so on.

Also you can do some formatting on your page using Jquery, for example I am making the font as BOLD for the list item entries.

$(".ms-formbody").css("font-weight","bold");

Also,
I want to hide the information in the screenshot, you can add this line as well.

$(".ms-descriptiontext").css("display","none");

Hope this helps someone looking for a similar scenario.

Mapping custom Active Directory fields to SharePoint

Many at times, I have been asked about mapping custom properties from Active Directory to SharePoint User Profile. I decided to answer them via this post.

Mapping fields from Active directory to SharePoint is very simple and straight forward. We will see a step by step demonstration now.

Go to your User Profile Properties, click on Manage Properties and Add Property

Enter the Name, Display Name, Type and Length of the field you are trying to map across to SharePoint (These attributes are for the SharePoint front). After entering these fields, as you scroll down the page, you will see the section “Add New Mapping”

Select the source of your AD Import from the dropdown, if you have just one AD Import profile, you will see that selected by default.

In the Attribute text field, enter the property name which is at the Active Directory side. Then click on Add. You will see the attribute is added in the Property Mapping for Synchronization section.

That’s it. You are done.

Click on OK and run a full synchronization.

You will see your property being pulled from AD to SharePoint.

SharePoint 2013: Working with sp.js files and Publishing pages

So you are trying to write Javascript code in SharePoint 2013 and want to load the sp.js file before your custom function is called. And for that you have used.

ExecuteOrDelayUntilScriptLoaded(“your javascript function”, "sp.js");

But it’s not working. Sad, isn’t it ?

The reason is that, with SharePoint 2013 publishing pages the above syntax doesn’t work. You need to register using the below syntax

SP.SOD.executeFunc('sp.js', 'SP.ClientContext', “your javascript function”);

I struggled 2 hours to find this MSDN article which showed me the right way.

Retrieving SharePoint List Items using Javascript in a Custom Webpart

So you want to fetch list items but do not want any post back, yes we can implement that using Javascript within our custom webpart by using a client control.

Let me explain that in a step by step process

• Create a new Visual Webart Project in VS 2012.
• Give it a proper name and make it a Farm level solution.
• Now delete the existing Visual WebPart item within the solution (to remove the default name) and add a new item – Visual WebPart and give it the desired name.
• Open ascx file and copy paste the code below

<%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>
<%@ Assembly Name="Microsoft.Web.CommandUI, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register Tagprefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register Tagprefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Register Tagprefix="asp" Namespace="System.Web.UI" Assembly="System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" %>
<%@ Import Namespace="Microsoft.SharePoint" %>
<%@ Register Tagprefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages" Assembly="Microsoft.SharePoint, Version=15.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Control Language="C#" AutoEventWireup="true" CodeBehind="VisualWebPart1.ascx.cs" Inherits="TestJavaScript1.VisualWebPart1.VisualWebPart1" %>

 Test

Here I am using client control and not any server control so there will not be any post back experience.

If you wish you can add more functionality to this same webpart and use it in your real world scenario like adding server controls to it and then writing some code behind for it and so on.

UserProfileApplicationNotAvailableException_Logging error within SharePoint 2013

Recently while playing around with UserProfileManager, I came across a very strange issue where I couldn’t find much help on the internet. After some researching here and there, I finally found that the issue was just a permission issue. While trying to use UserProfileManager in my code, I was passing the SPServiceCOntext object to it and while creating an object of UPM, the error I was getting was

UserProfileApplicationNotAvailableException_Logging :: UserProfileApplicationProxy.ApplicationProperties ProfilePropertyCache does not have 607c1325-164c-4da5-8bd0-e28be323a06c

The resolution of this is to assign Full Control permission to the User Profile Service in Central Administration. In my case, it was my account and as I gave it full control, it ran smoothly. Follow the screenshots for details.

Navigate to Central Administration > Application Management > Manage Service Applications and select User Profile Service

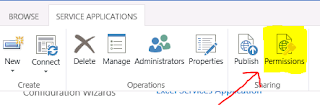

Click on Permissions

Add the account which runs the designated code.

Hope this helps someone.

Importing Active Directory profiles to SharePoint 2013

This post describes one way communication of Active Directory users to be brought into SharePoint 2013 environment.
We need an account set up for the AD profile synchronization. Let’s call it “SharePointADSync“, we need to configure a couple of things on this account in AD:

Add “Replicate Directory Changes” permission

• On the domain controller, click Start, click Administrative Tools, and then click Active Directory Users and Computers.
• In Active Directory Users and Computers, right-click the domain, and then click Delegate Control.
• On the first page of the Delegation of Control Wizard, click Next.
• In the Users or Groups page, click Add.
• Type the name of the synchronization account, and then click OK.
• Click Next.
• In the Tasks to Delegate page, select Create a custom task to delegate, and then click Next.
• On the Active Directory Object Type page, select This folder, existing objects in this folder, and creation of new objects in this folder, and then click Next.
• On the Permissions page, in the Permissions box, select Replicate Directory Changes, and then click Next.
• Click Finish

Follow these steps now to import AD profiles to SharePoint.

Go to Central Admin. Click Manage Service applications under Application Management.

From the list of services, click on the User Profile Service Application

Under Synchronization, click Configure Synchronization Settings

Select the “Use SharePoint Active Directory Import” radio button under Synchronization Options. Click OK to save settings. You will then be redirected to the User Profile page.

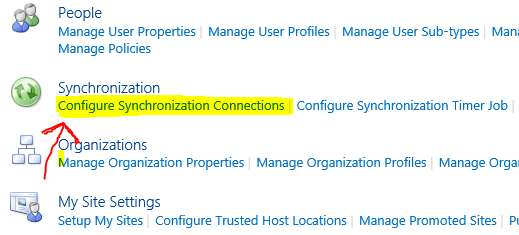

Under Synchronization, click Configure Synchronization Connections and create a new connection.

Fill in appropriate values and click Populate Containers. Once the containers are populated, check the ones you would like to import to SharePoint and save the connection. In the Account name, enter the SharePointADSync account details that we have created for this purpose.

No you can go ahead and do a full import, which will import the selected profiles to your SharePoint.

Edit Top Navigation Branding within SharePoint 2013

Changing the default SharePoint branding on SharePoint 2013 sites is something which I am sure all of us would want to do. You would prefer seeing your organization name rather than SharePoint on your intranet/internet sites. I am placing a screenshot so as you know what I am talking about.

While I was looking to implement the same thing, I did a bit of research and thought the newly introduced Design manager might have something. But unfortunately it doesn’t. Finally I managed to change this using CSS. However there is one another easy peezee way of doing the same thing by using powershell script.

$webApp = Get-SPWebApplication “http://WebAppURL”
$webApp.SuiteBarBrandingElementHtml = "SharePointClick"
$webApp.Update()

Step by Step Installation guide for SharePoint 2013

Installing SharePoint 2013 is very simple and almost same steps as we had followed when we installed SharePoint 2010. In this post I will explain step by step installation on a Stand Alone system used for trial or development purposes.

I have already installed Windows Server 2012 in my VM so I am good to go for my SharePoint 2013 installation.

Download the ISO for SharePoint and mount it. For mounting, just right click and say Mount.

Let us install the Pre-requisites first. Follow the screenshots below for clarity.

 Check the Accept checkbox and click Next

 Sit back and wait for the pre-requisites to be installed

 Click Finish and restart your system

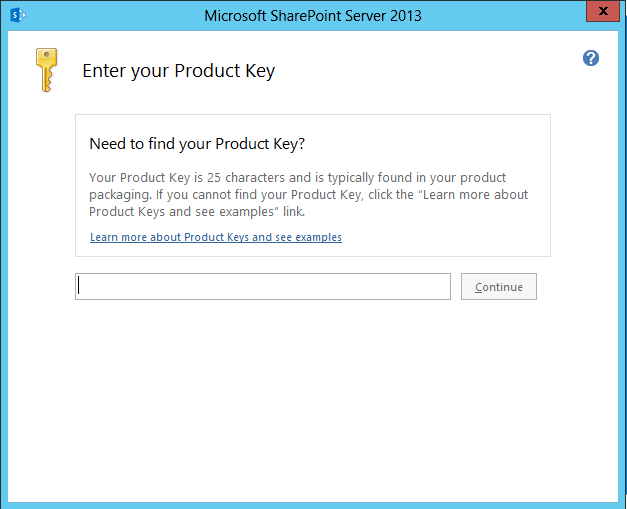

 Once you restart the installer will continue and finish the installation. Then its time to double click the Setup.exe and start installing SharePoint 2013. The first thing you will see is that it will ask you to enter your Product Key. Enter the key and click on Continue.

 Once again it will ask you to accept to their terms which anyways we all have to.

Select the Server type, in my case I wanted a Stand Alone as I use this for development purposes. You can select your case and say Install Now.

By default SharePoint will be installed in your C drive, I recommend you do not change it. However if that is one of your requirement, you can do it now in the File Location tab.

 Sit back, relax and wait for the installation to finish

Installation is complete now and you can now configure your SharePoint 2013

Finally, the installation is complete and now you will be asked to create the first SharePoint 2013 site and bingo, you have installed SharePoint 2013 successfully. You can now browse to the Central Admin and create Web applications, site collections and dive into the deep SharePoint sea.

Like us on Facebook for more SharePoint 2013 updates.

Programatically breaking inheritance and adding unique permission to List Items

Permission handling is something which makes SharePoint a favorite product within the industry. SharePoint has Permission levels in built for basic roles, however you can create your own permission levels and assign to Groups and then set those groups to access any site/library/list. Whenever a sub-site is created, it asks you if you want to inherit the permission from the parent site or want to create unique permissions.

If you choose to inherit the permissions, it will copy the same set of permissions to the sub-site which will again be passed on to the lists/libraries you create. It may happen that for securing our content, we want to break this inheritance and want to assign unique permissions to restrict the users for certain actions and to make the content more secure. Inheritance can be broken manually using the Out of feature also and if you have a business logic in place, you can do it programmatically also. This blog post gives you code to break inheritance for items meeting certain criteria and assigning permissions to them explicitly. I am using ItemAdded() event receiver to do this. You can use it within workflow or any custom webpart as well.

SPGroup securityGroup = spWeb.SiteGroups["Security Group Name"];
SPRoleDefinition groupRole = spWeb.RoleDefinitions["Read"];

SPRoleAssignment roleAssign = new SPRoleAssignment(securityGroup);
roleAssign.RoleDefinitionBindings.Add(groupRole);

SPListItem listItem = spWeb.GetListItem("http://List Item URL");
listItem.BreakRoleInheritance(true);
listItem.RoleAssegnments.Add(roleAssignment);
listItem.Update();

Creating Event Recievers within Visual Studio 2010

Event receivers can be broadly seen as of two types:

Asynchronous (triggered before finishing of previous event)

          ItemAdding, ItemUpdating

Synchronous (triggered after finishing the previous event)

          ItemAdded, ItemUpdated

Follow Steps to create an event receiver with Visual Studio 2010 and SharePoint 2010 :

• Open up Visual Studio 2010 with administrator privileges
• Click File > New > Project
• Under Installed templates, click SharePoint and then select Event Receiver (C# in my case). Enter the name, storage location and Solution name in the text box provided and click on OK.

• It will then ask you to specify the site and trust level or scope of your solution. If you want to deploy it across your farm so that all web applications can make use of it, you should select Deploy as Farm Solution. However, with event receivers, it is not usual so we will select Deploy as Sandboxed solution, which means it will only be accessible to the sites where we activate this feature.

• Now it will ask you to select the type of Event Receiver you would like to create. In our case it would be List Item Events. Then select what item should be the event source, here we will select Document Library as we want to create an item in document library and want our event receiver logic to run after that. You may want to select Picture library or a list here or as per your business scenario.

• Now, check the events you would want to code for within your receiver. For the sake of example, I will check An Item was Added which means it will automatically create a method stub for me with ItemAdded method. Now click on Finish.

Our development IDE is ready to use now and you can see the method stub for ItemAdded being created already.

Copy and Paste the code below to your solution.

using (SPWeb web = properties.OpenWeb())
{
    //Name is a metadata column within my document library
    //Checking if the Name field is equal to Test
    if (properties.ListItem["Name"] == "Test")
    {//If it is
        // Populating the Title field with some value
        properties.ListItem["Title"] = "Event handler works";
        // Updating the ListItem to incorporate the change.
        // Necessary step, without this  the changes are not pushed to ListItem
        properties.ListItem.Update();
    }

}

Some more useful methods which can be used are

//Name of the Document Library
string DocLibraryName = properties.ListTitle.ToString();

//Getting the Item ID
int ItemID = properties.ListItem.ID;

//Collection of Role Assignments - required for controlling permission to the Item
SPRoleAssignmentCollection roleAssignment = properties.ListItem.RoleAssignments;

Build the solution and deploy it. Go to your SharePoint site and activate it(if not already activated) and create any document library and create an item with Name as Test and see your event receiver in action.

This event receiver will fire on all the document libraries within your site where you have activated the feature, if this is not the intended behaviour, use

if(properties.ListTitle.ToString() == "DocumentLibraryName")

And write all your logic within your IF block.

For any queries please feel free to email me. If this post helped you, please share it and benefit more and more fellow SharePoint developers
